Visalia, CA
Project Summary

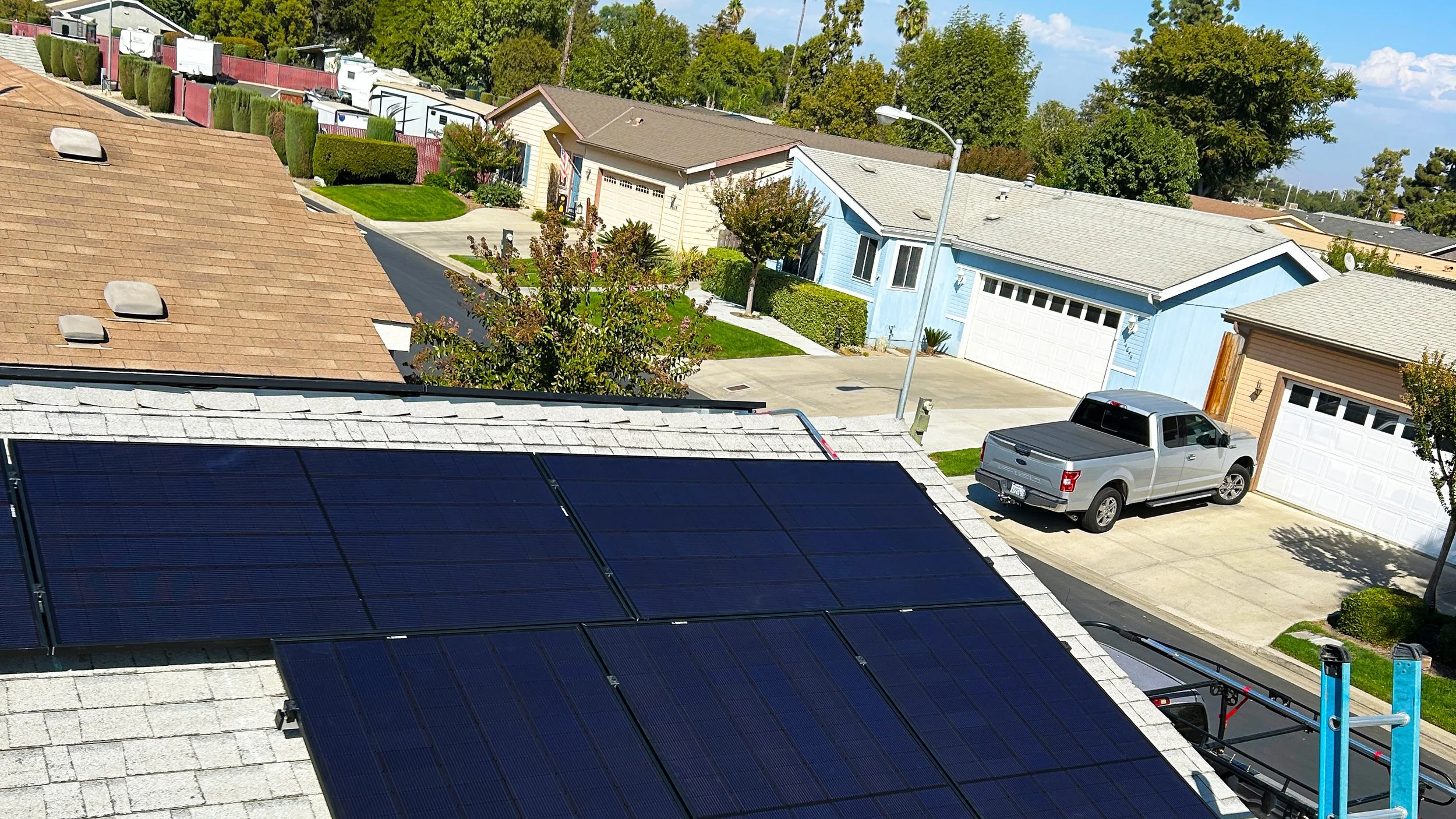

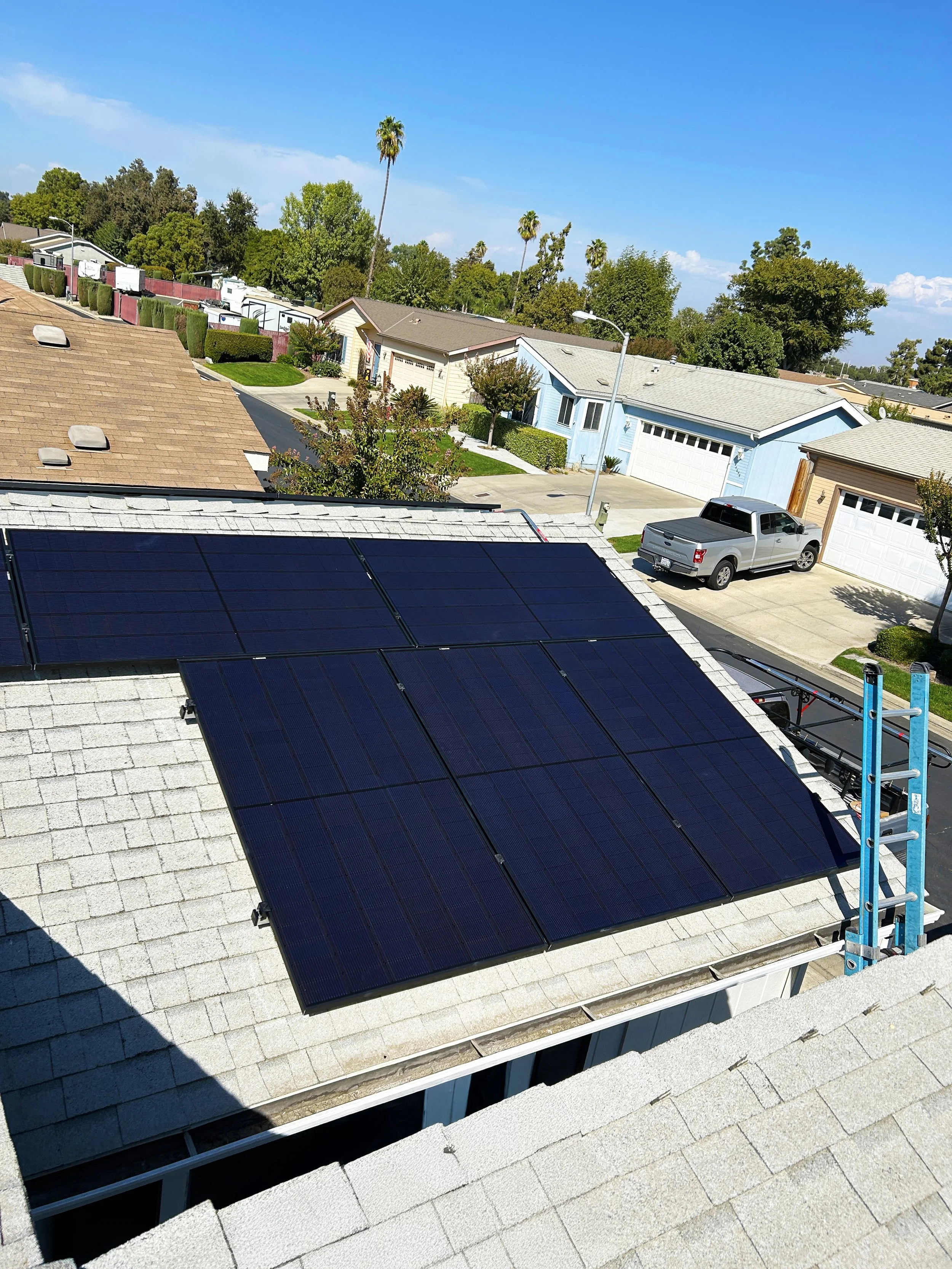

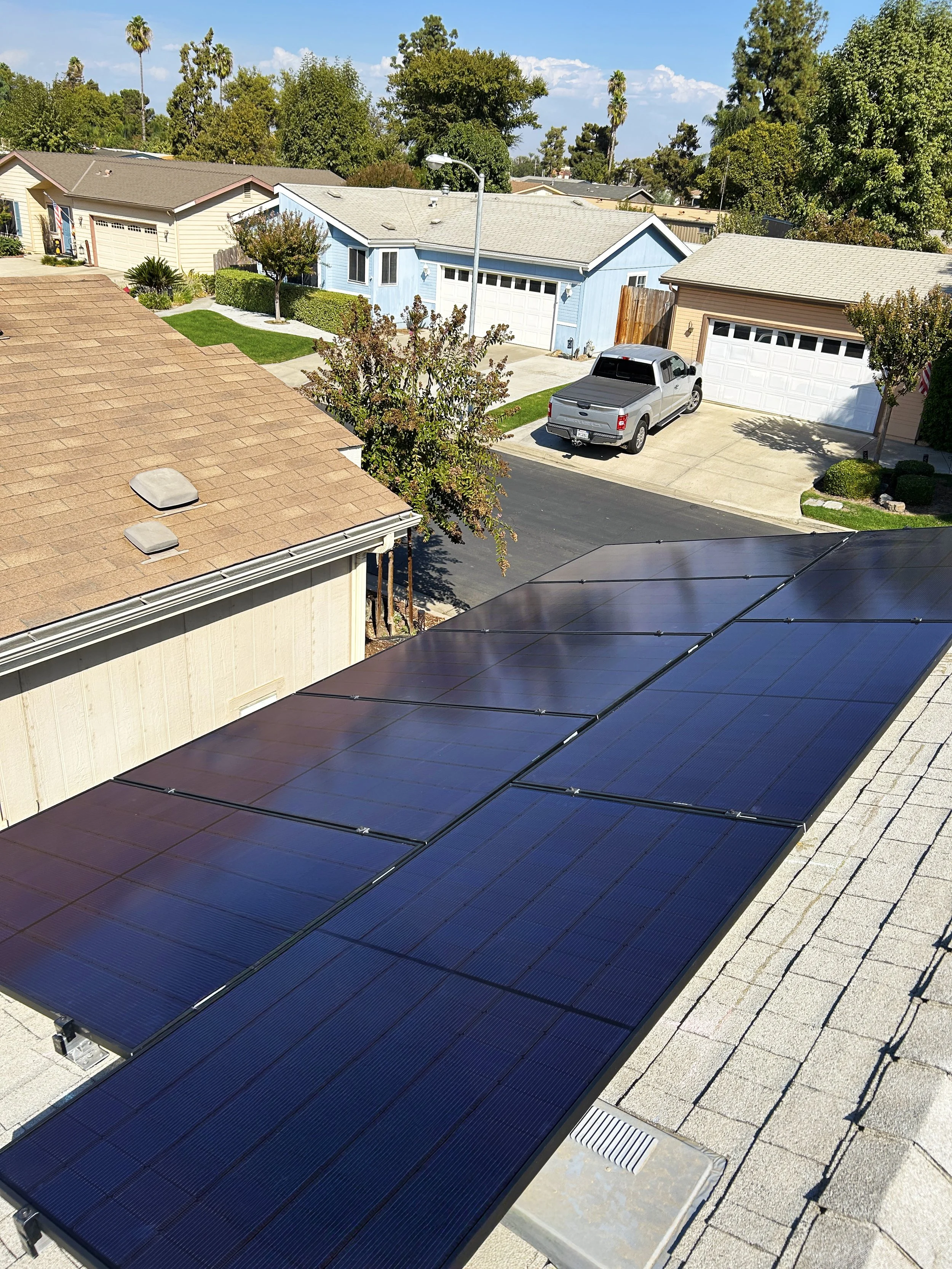

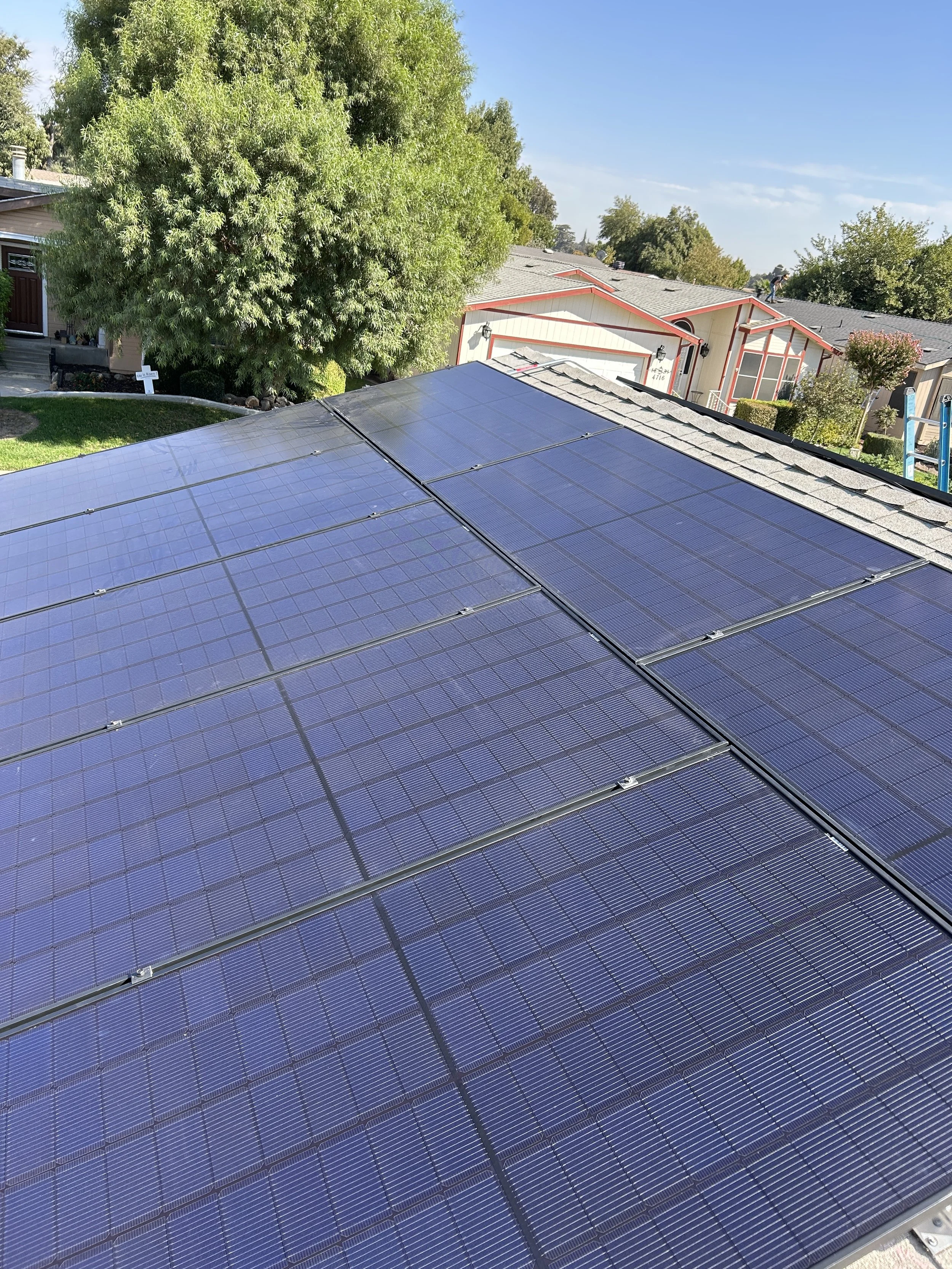

This 5.88 kWDC system pairs REC all-black modules with a Tesla Powerwall 3 (13.5 kWh) and Gateway 3 for clean backup power. Panels split between north/south roof planes to balance shading, while the PW3 is wall-mounted in the garage with clear working space and protection per code.
Technical Specs
System size: 5.88 kWDC / 11.50 kWAC (per plan set)
Modules: 14 × REC 420 AA Pure Black
Rapid shutdown: 7 × Tesla MCI-1 (pair-per-two modules)
Battery: 1 × Tesla Powerwall 3 (13.5 kWh), Gateway 3 (service-rated)
Main equipment: 100A service noted in plans; consumption CTs per Tesla method
Racking: Unirack NXT uMount + Stronghold attachments (comp shingle)

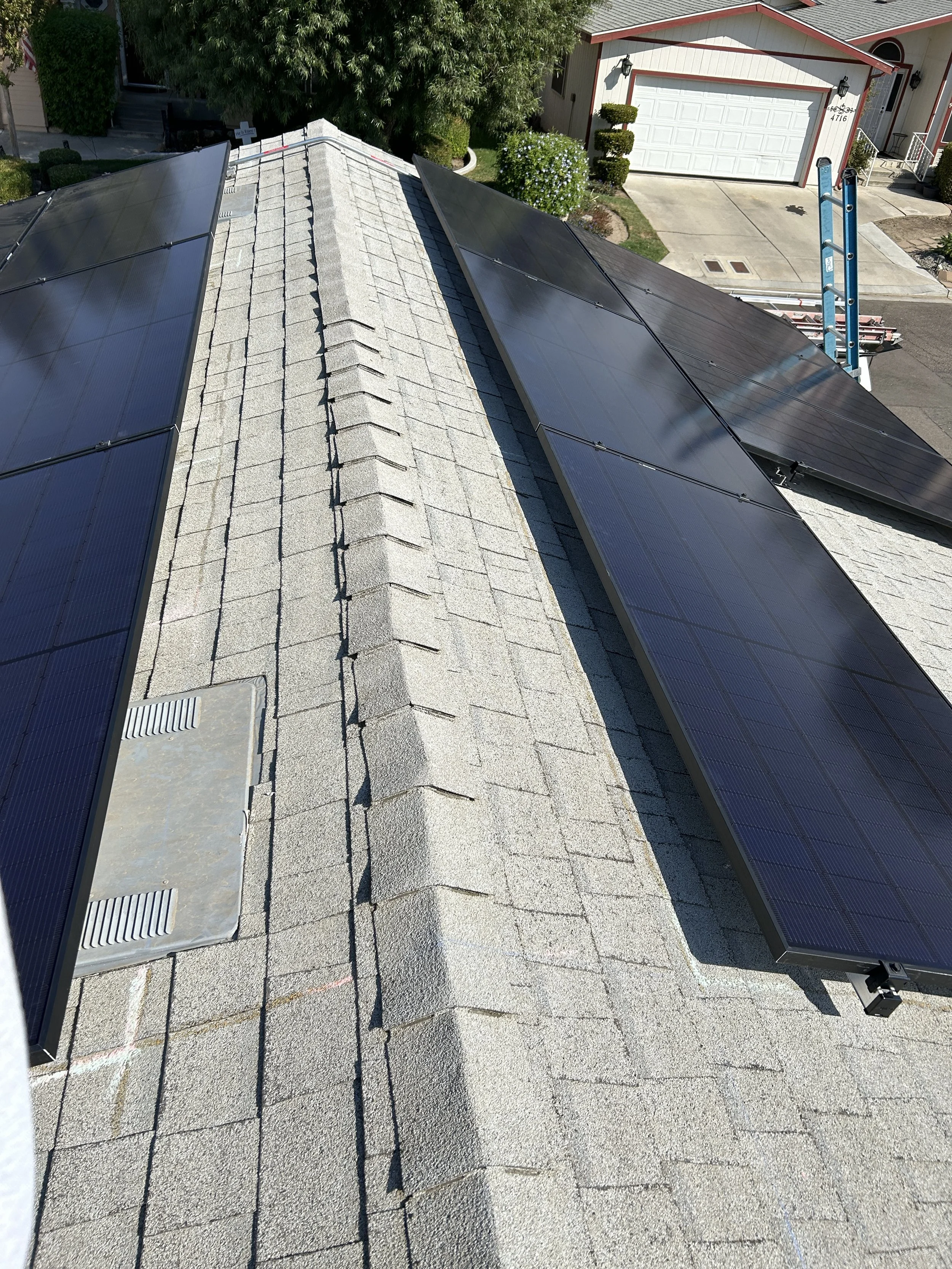

Notable: Two arrays (tilt 18°, azimuth 0° & 180°); code-compliant 18” ridge setbacks and 36” pathways.
